Grab Hook (Eye type)

No review yet. Write Review

$0.00

Description

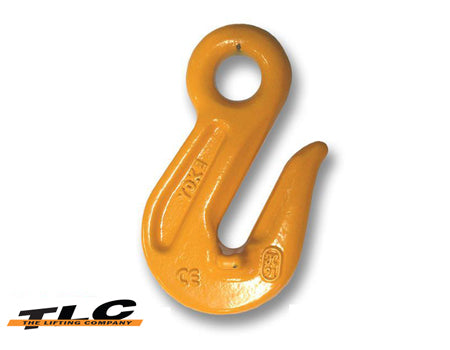

Grab hook (Eye type).

Grab hooks can are used for shortening the length of chain slings and creating reeved sling configurations.

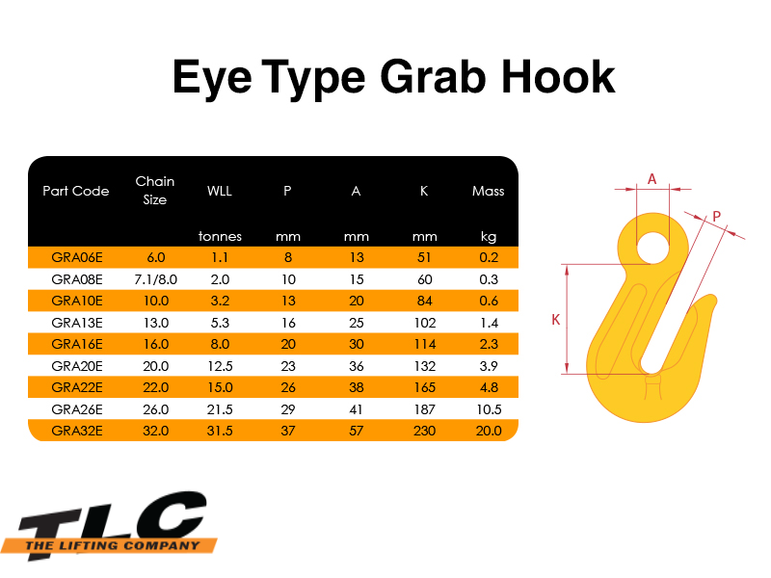

Eye Type Grab Hook
Part Code	Chain Size	WLL	P	A	K	Mass
		tonnes	mm	mm	mm	kg
GRA06E	6	1.1	8	13	51	0.2
GRA08E	7.1/8	2	10	15	60	0.3
GRA10E	10	3.2	13	20	84	0.6
GRA13E	13	5.3	16	25	102	1.4
GRA16E	16	8	20	30	114	2.3
GRA20E	20	12.5	23	36	132	3.9
GRA22E	22	15	26	38	165	4.8
GRA26E	26	21.5	29	41	187	10.5
GRA32E	32	31.5	37	57	230	20

Back to Alloy Fittings
