SW-NH Sideways Drum Rotator
| Product | Code |
|---|---|
| Sideways Drum Rotator | SW-NH |
| Sideways Drum Rotator + PBO | SW-NHPBO |

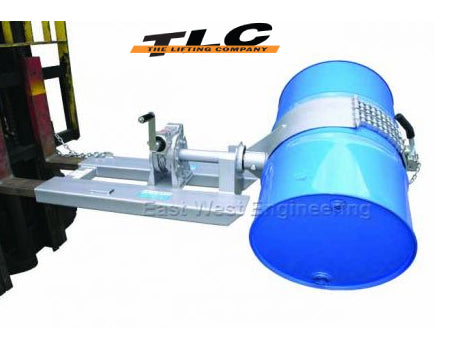

The SW-NH Sideways Drum Rotator is designed to lift a 205 litre drum at a sideways direction to the forklift and rotate 360 degrees. Rotation of the drum is controlled through the gear box via a hand wheel, allowing the entire contents of the drum to be tipped.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Hand wheel is used to rotate the drum, ideal for elevated loads
• Gearbox allows full control of rotation
• Belly strap and eccentric lock secures drum in position
• Slip-on attachment allows quick connection to a narrow carriage forklift
• Can be coupled with the PBO Plastic Barrel Option
• Enamel paint finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 500kg |
| Load Centre | 1430mm |
| Rotation | 360° |
| Unit Weight | 117kg |
| Fork Pocket Size | 185 x 60mm |
| Fork Pocket Centres | 430mm |
A special plastic barrel option (PBO) can be fitted to for use with plastic drums and barrels as well as the standard steel drums. When ordering with this option select SW-NHPBO
NOTE: Drum rotators fitted with PBO option reduces Working Load Limit (WLL) to 350kg.
