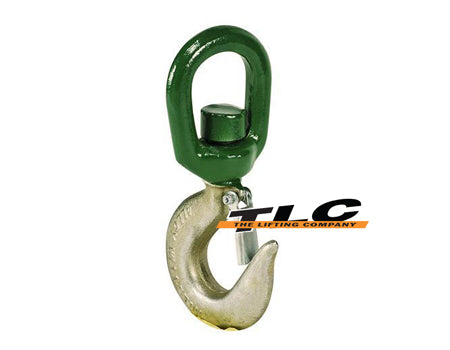

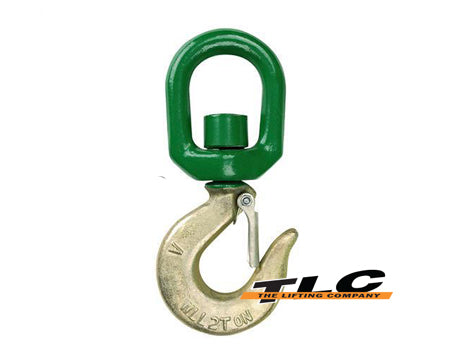

Swivel Hoist Hook Alloy Eye
International swivel eye hoist hooks with safety latch are commonly used for general lifting and can also be used in towing applications.
• Marked with the working load limit and alloy. TLC branded with manufacture quality mark.
• Batch tested, test certificates available upon request.
• Manufactured from forged alloy steel quenched and tempered.
• Spare Latch kits are available.
 |
|||||||||
| WLL (T) | CODE | Wt.(kg) | DIMENSIONS (mm) | ||||||
| B | C | L | L1 | D | D1 | E | |||
| 1 | 105010 | 0.37 | 32 | 22.5 | 136 | 108 | 16 | 9 | 17 |
| 1.5 | 105015 | 0.64 | 37.5 | 29.5 | 163.5 | 133.5 | 16 | 12 | 22.5 |
| 2 | 105020 | 1.05 | 42.5 | 33 | 192 | 150.5 | 17.5 | 15.8 | 26 |
| 3 | 105030 | 1.24 | 42.5 | 33 | 209 | 163 | 23 | 15.8 | 26 |
| 4.5 | 105045 | 2.25 | 48 | 39 | 246 | 191 | 31 | 18 | 32.5 |
| 7 | 105070 | 4.66 | 64 | 53 | 313 | 243.5 | 34 | 25 | 43 |
| 11 | 105099 | 7.4 | 70 | 53 | 364 | 277 | 41.5 | 28.5 | 49.5 |
