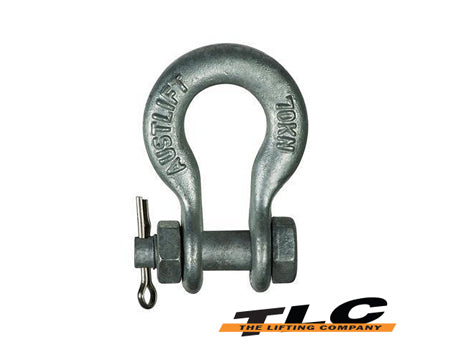

Shackle Bow for power line 70KN 16mm 16mm
Special purpose shackle are generally used for electrical industries and in railway lines.
• Generally conforms to AS1154.2.
• Made from high tensile steel in bow configuration with Safety Pin and hot dipped galvanised finish & stainless steel humpback split pin.
• Suitable for holding applications.
• Insulator & conductor fittings for overhead power lines.
 |
||||||||
| SIZE(mm) | MBF(kN) | MFL*(kN) | Wt.(kg0 | DIMENSIONS (mm) | ||||
| B | D | D1 | L | W | ||||
| 16 | 87.5 | 70 | 0.456 | 34 | 15 | 13 | 60 | 21 |
