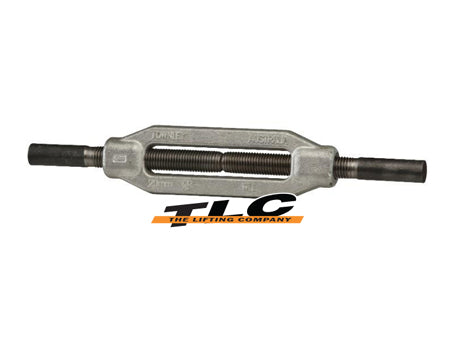

Stub & Stub Turnbuckles
- Heavy Duty and Rated
- Galvanized Body
- Stub Ends G300 Mild Steel (AS/NZS 3679.1-300) – Weldable Hot Rolled Structural Steel
- Manufactured using only heat certified Australian Steels (AS1442/AS1444)
- Welding shall be to recommended welding instructions
Available on Request:
- Conformance Certificate (Body Only)

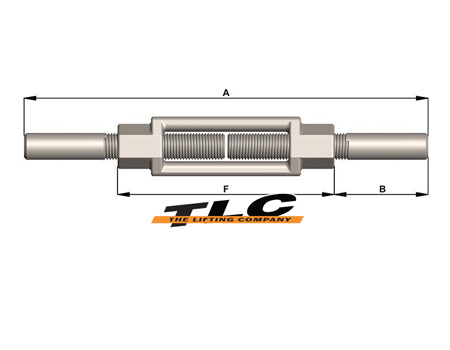

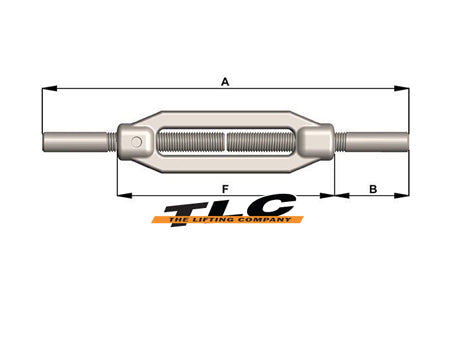

| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | B | F | Grade | Weight (kg) | Product Code |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 0.3 | M10 | 265 | 375 | 55 | 150 | Heavy Duty | 0.5 | TBSS10 | |
| N/A | 0.5 | M12 | 335 | 475 | 70 | 191 | Heavy Duty | 0.8 | TBSS12 | |
| N/A | 0.75 | M16 | 365 | 495 | 72 | 204 | Heavy Duty | 1.2 | TBSS16 | |
| N/A | 1.25 | M20 | 365 | 500 | 79 | 217 | Heavy Duty | 2 | TBSS20 | |
| N/A | 2.5 | M24 | 400 | 535 | 89 | 232 | Heavy Duty | 3.12 | TBSS24 | |
| N/A | 5 | M33 | 400 | 554 | 74 | 252 | Heavy Duty | 5.5 | TBSS33 | |
| N/A | 5 | 1.25 | 415 | 565 | 70 | 255 | Heavy Duty | 4.61 | TBSS1250 | |
| N/A | 6 | 1.5 | 550 | 740 | 160 | 275 | Heavy Duty | 8.25 | TBSS1500 |
