CPC Concrete Washout Bin
| Product | Code |
|---|---|
| WLL 2000KG 1.3cu.m | CPC17 |
| WLL 2000KG 2.5cu.m | CPC23 |
| WLL 5000KG 2.4cu.m | CPC23H |

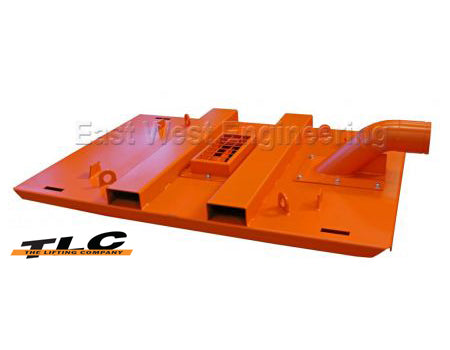

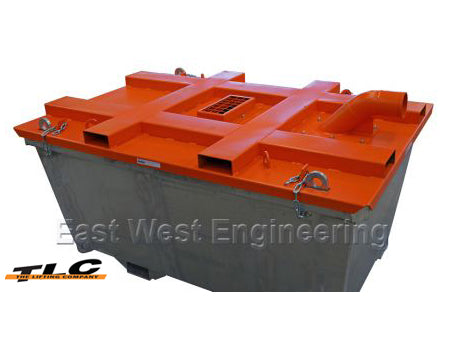

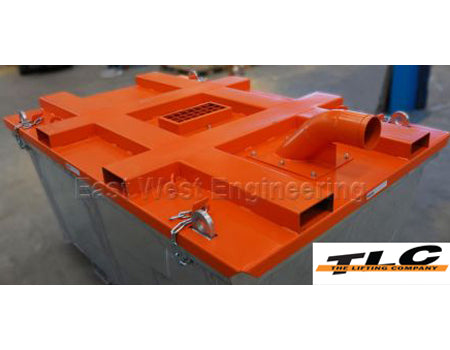

The CPC CONCRETE WASHOUT BIN is a safe, effective on-site solution for handling line cleans for boom and line concrete pumps. Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning. Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste. Disposable concrete washout plastic insert bags are available to make collection and disposal of waste easy, fast and cost effective.
Features:
- Suitable for use with boom and line concrete pumps
- Can safely be used with compressed air and water line cleans
- Easily removable exhaust air vent for sponge recovery
- Lid is fitted with crane lugs and fork pockets for easy fit up and removal
- Lid is secured to bin by safety chains in 4 points
- Bin is fitted with crane lugs for both lifting and upending load and 4-way entry fork pockets
- Multiple bins can be nested for storage and transport when not in use
- 125mm NB waste intake pipe for quick and safe connection
- Optional reducers available to suit 100/80/50mm pipelines
- Paint/Galvanised finish
| Model |
Bin WLL (kg) |
Capacity (cu.m) |
Overall Dimensions (mm) |
Unit Weight (kg) |
| CPC17 |
2000 |
1.3 |
1830 x 1185 x 1280 |
380 |
| CPC23 |
2000 |
2.5 |
2340 x 1545 x 1316 |
600 |
| CPC23H |
5000 |
2.4 |
2340 x 1540 x 1324 |
850 |
