GBSR5 Gas Cylinder Storage Rack - 450x900

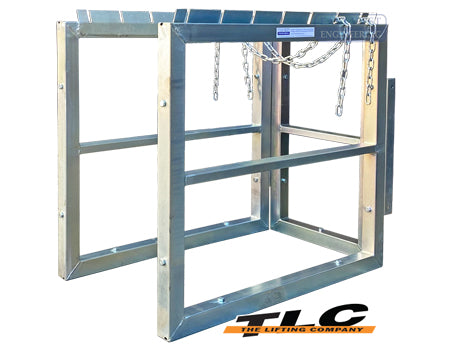

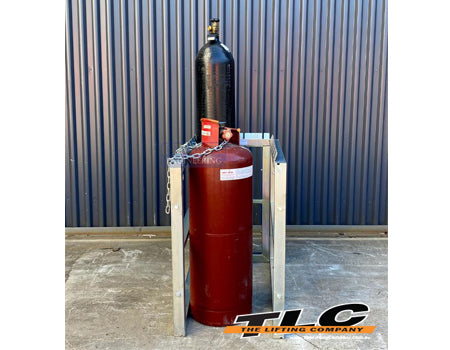

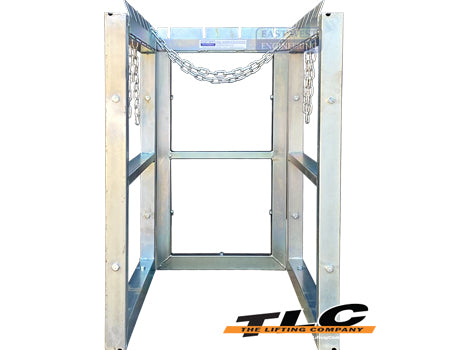

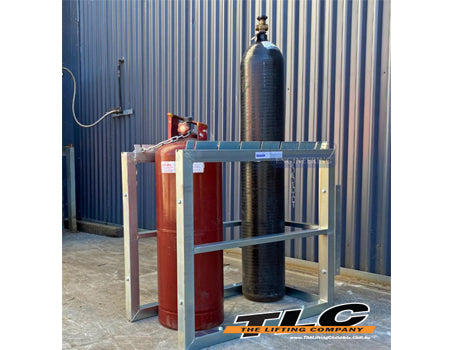

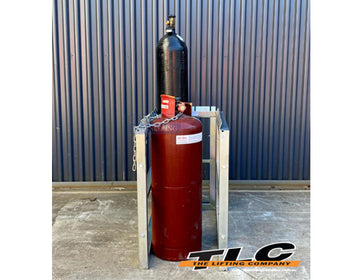

The GBSR5 Gas Cylinder Storage Rack is an effective indoor/outdoor bulk cylinder storage racking system designed for safety and flexibility. This modular unit allows growth in the number of cylinders stored at a site and the ability to organise and segregate gas cylinders by type, empty or full as per safety standard AS4332.
FEATURES:
• Safely secures and restrains gas cylinders indoors or outdoors
• Allows organisation and segregation of cylinders by type, empty or full
• Modular system allows for flexibility to suit individual or changing storage requirements
• Chain anchor plates allow all cylinder sizes to be individually restrained
• Gas cylinder storage area safety sign supplied
• Fast and easy assembly
• Can be safely secured to floor using masonry bolts

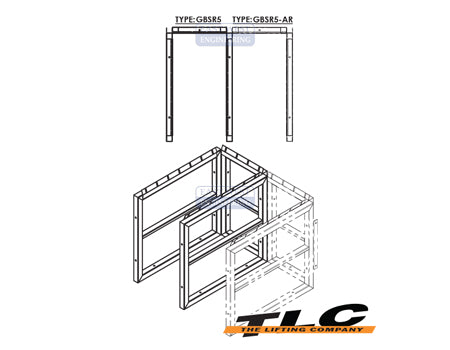

• Additional racking bays (GBSR5-AR) are simply bolted on
• Designed to relevant Australian standards including AS 4332
• Zinc finish for long life corrosion protection
Supplied flatpack for on-site assembly
SPECIFICATIONS:
|
Inside Dimensions | 450 (w) x 900mm (d) |
| GBSR5 O/All Dimensions | 550 (w) x 950 (d) x 840mm (h) | |
| GBSR5 Unit Weight | 38kg | |
| GBSR5-AR O/All Dimensions | 500 (w) x 950 (d) x 840mm (h) | |
| GBSR5-AR Unit Weight | 24kg |
