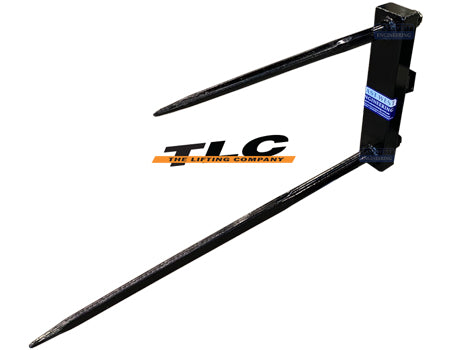

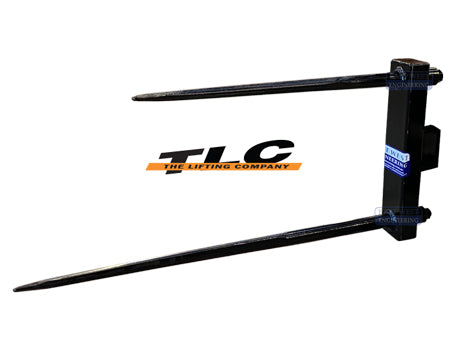

QHBV2 Vertical Bale Spear Attachment
The QHBV2 Bale Spear Attachment is designed for the safe and easy handling of bales with a tractor, skid steer or forklift fitted with a Q Series carriage.
FEATURES:
• Ideal for picking up round hay bales with minimal effort

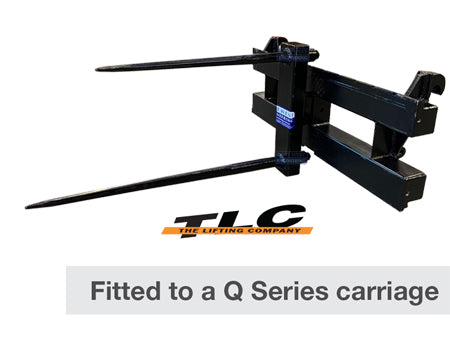

• For use on a tractor, skid steer or forklift fitted with a Q Series carriage
• 2 removable bale spears supplied
• Long spear safely transports the bale, short spear stops bale from rotating
• Spears taper for easier penetration and removal from the bales
• Q Series accessories are designed for fast and easy fitment to a Q Series carriage
• Made of high tensile strength steel for strength and durability
COMPATIBLE Q SERIES CARRIAGES:
• QEH25 Euro Hitch Carriage
• QCH Challenge Hitch Carriage
• QBH Burder Hitch Carriage
• QSS25 Skid Steer Carriage
• QHF20 Hinge Floating Carriage
• QMC12 Mini Hitch Carriage
• QSC Universal (Blank) Carriage
• FQL250 Q-Fit Hook Point Forklift Jib
SPECIFICATIONS:
 |
Working Load Limit (WLL) | 800kg |
| Load Centre | 500mm | |
| Spear 1 dimensions | Ø45 x 900mm clear length | |
| Spear 2 dimensions | Ø45 x 1100mm clear length | |
| Sleeve Size | Conus II | |
| Overall Dimensions | 1280 x 610 x 125mm | |
| Unit Weight | 35kg |
