QSS25 Skid Steer Carriage Adaptor
| Product | Code |
|---|---|
| Skid Steer Carriage 2500kg | QSS25 |

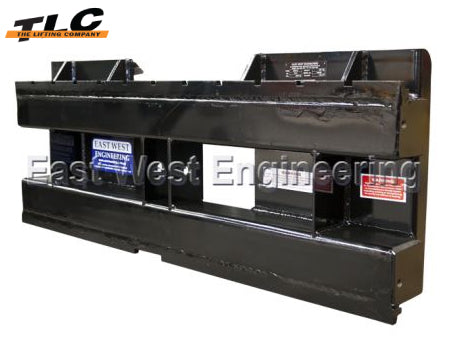

The QSS25 SKID STEER CARRIAGE is a Class 2 carriage designed to attach quickly to your skid steer machine allowing for easy fitment of fork tines, load guard, bale spears, towing hitches or lifting jibs.
It has a rated capacity of 2500kg and is designed for use with a skidsteer or track loader. The carriage has a universal skid steer mounting suitable for most models including CAT, Case, Bobcat, Gehl, Mustang, New Holland, etc. The QSS25 carriage has been designed for easy fitment of a large range of optional accessories including step-thru loadguard, Class 2 fork tines, towing hitch, lifting jibs (3 sizes available) and bale spears (3 sizes available).
** Please note some models of skid steer do not fit standard skid steer attachments. Check with your manufacturer for compatability**
Fully certified with compliance plate attached. This attachment and accessories have been designed strictly in accordance with AS2359.1 and ISO23206, with independent engineer’s verification of all design capabilities. All maximum load ratings given are for the attachments only. The rating of the loader should be confirmed by the manufacturer and the residual capacity reduced if required.
SPECIFICATIONS:
* Working Load Limit (WLL) 2500kg @ 500mm load centre
* Width 1200mm x height 550mm
* HCG: 45mm
* VCG: 39mm
* Weight: 74kg
* Fitted with universal skid steer hitch (check for compatability)
* Black enamel finish
Accessories available to fit the QSS25 include:

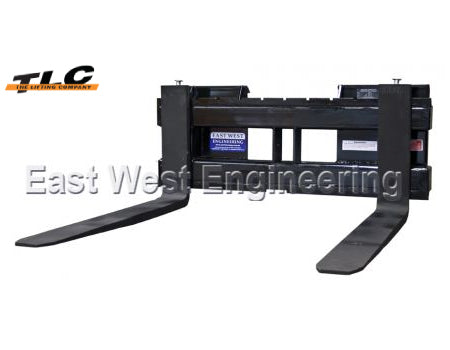

* FA25-107 Fork arms 125 x 35 x 1070mm long class 2 (WLL 2500kg)

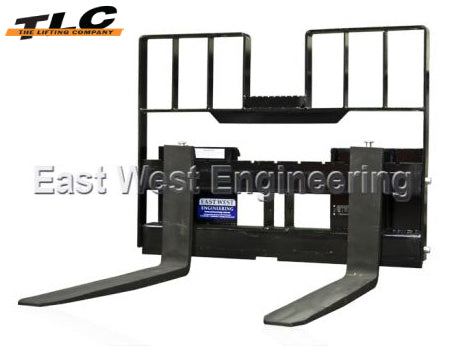

* QSS25LG Bolt-on step-thru Loadguard

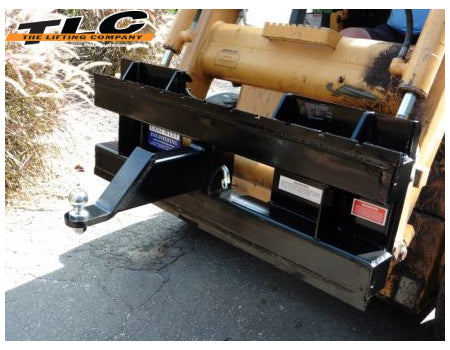

* QEH25TH Towing hitch complete with towball (WLL1500kg)

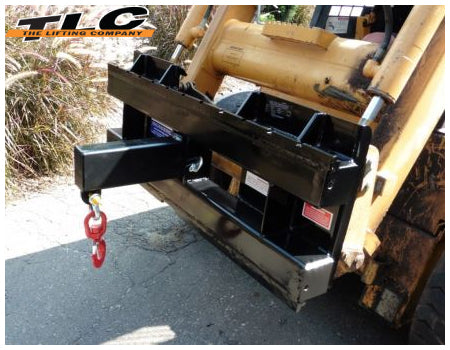

* QEH25LH 420mm Lifting Jib with shackle and hook (WLL 2500kg)
* QEH25LHX 1000mm Lifting Jib with shackle and hook (WLL 800kg)
* QEH25LHX2 1750mm Lifting Jib with shackle and hook (WLL 400kg)

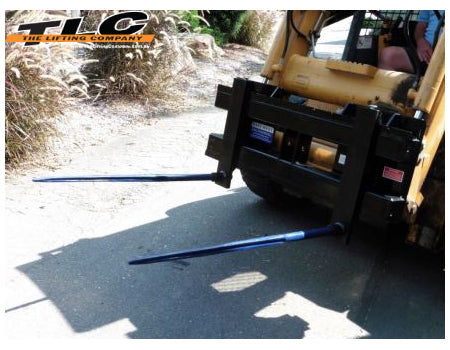

* FLF25-90 Fork Shank & Bale Spear Conus I 36mm dia x 970 length
* FLF4-90 Fork Shank & Bale spear Conus II 45mm dia x 900 length
* FLF4-110 Fork Shank & Bale spear Conus II 45mm dia x 1100 length
