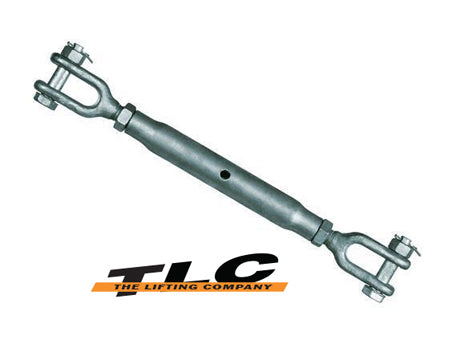

Rigging Screw Grade P Jaw/Jaw
• Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
• Manufactured from Grade L/P high tensile material quenched and tempered hot dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with lock nuts.
• Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
• Suitable for industrial lifting purposes.
• Individual proof tested.
 |
|||||||||
| SIZE(mm) | CODE | WLL(T) | Wt.(kg) | DIMENSIONS(mm) | |||||
| A | C | D | N | O | |||||
| 10 | 407010 | Crade P | 0.6 | 0.48 | 152 | 124 | 21 | 235 | 345 |
| 12 | 407012 | Grade P | 1 | 0.98 | 229 | 183 | 25 | 350 | 525 |
| 16 | 407016 | Grade P | 1.6 | 1.4 | 229 | 194 | 27 | 390 | 530 |
| 20 | 407020 | Grade P | 2.5 | 23 | 229 | 204 | 34 | 405 | 540 |
| 24 | 407024 | Grade P | 4 | 4.85 | 356 | 292 | 42 | 565 | 820 |
| 27 | 407027 | Grade P | 5 | 5.75 | 256 | 294 | 45 | 590 | 805 |
| 33 | 407033 | Grade P | 8 | 8.08 | 381 | 320 | 57 | 640 | 870 |
| 39 | 407039 | Grade P | 10 | 13.5 | 407 | 356 | 63.5 | 700 | 960 |
| 45 | 407045 | Grade P | 12 | 18.6 | 407 | 378 | 70 | 755 | 975 |
| 48 | 407048 | Grade P | 16 | 23 | 407 | 404 | 76 | 790 | 975 |
