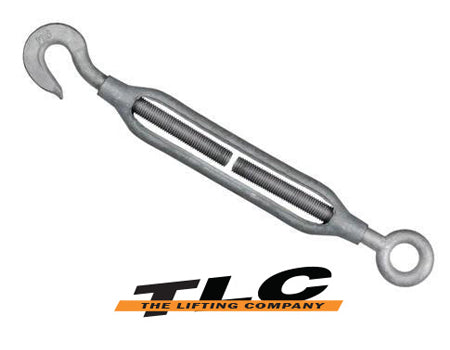

Turnbuckle Forged GAL Hook/Eye JIS

No review yet. Write Review

$0.00

Size

6mm 8mm 10mm 12mm 16mm 20mm 22mm 25mm 28mm 32mm

InStock SOLD OUT

Description

• Suitable for outdoor use in conjunction with wire rope assemblies etc. for heavy duty tensioning applications.
• Manufactured from forged steel in hot dipped galvanised finish.

• Hook and eye end fittings for intended applications.


SIZE(mm)	CODE	WLL(kg)	wt(kg)	DIMENSIONS(mm)
SIZE(mm)	CODE	WLL(kg)	wt(kg)	B	D	D1	C	L1
6	403006	70	0.1	100	6	11	8	48
8	403008	100	0.18	125	8	14	10	58
10	403010	230	0.31	150	10	18	13	70
12	403012	320	0.55	200	12	19	14	95
16	403016	630	1.1	250	16	24	18	105
20	403020	980	1.94	300	20	26.5	22	130
22	403022	1220	2.64	330	22	34	24	165
25	403025	1410	4	350	25	37	26	190
28	403028	1700	6	350	28	38	29	160
32	403032	2100	10	400	32	38	33	200
