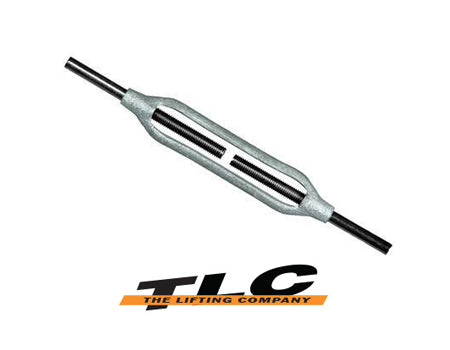

Turnbuckle Forged Stubs Stubs Black

No review yet. Write Review

$0.00

Size

10mm 12mm 16mm 20mm 22mm 25mm 28mm 32mm

InStock SOLD OUT

Description

Turnbuckle (Stub & Stub Type, Forged)
• Stub ends allow the flexibility to be welded and customise complicated systems.
• Manufactured from heavy duty forged steel body in hot dipped galvanised finish.
• Available in zinc or black finish stub ends.


SIZE(mm)	CODE		Wt.(kg)		DIMENSIONS	(mm)
SIZE(mm)	ZINC	BLACK	Wt.(kg)	B	D	L	L1
10	405010	405010B	0.31	150	8.9	130	75
12	405012	405012B	0.55	200	10.68	150	100
16	405016	405016B	1.1	250	14.5	180	125
20	405020	405020B	1.94	300	18.1	220	150
22	405022	405022B	3	330	20.1	250	165
25	405025	405025B	4	350	21.7	270	175
28	405028	405028B	5.5	350	25.8	290	190
32	405032	405032B	7	400	28.85	300	200

Back to Turnbuckles / Rigging Screws
