Support Carriage
| Product | Code |
|---|---|
| Support Carriage Class 2 | QSC25 |
| Support Carriage Class 3 | QSC30 |

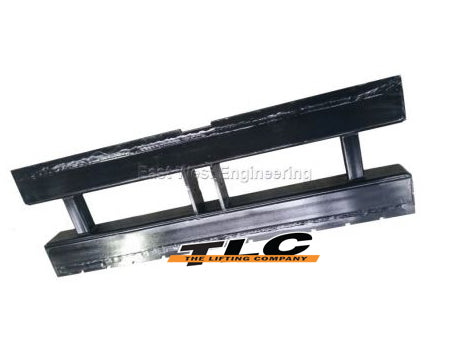

Support Carriage.
The type QSC Carriage is a weld on unit suitable for all machinery and agricultural applications where Fork Tines are to be fitted. Manufactured from high grade steel in accordance with AS2359.11, this Carriage is precision machined to suit either Class 2 or Class 3 Fork Tines.
The Working Load Limit (WWL) of this unit varies between 2.5 & 3 Tonne at a Load Centre of 500mm depending on type chosen – refer chart below. These units are supplied in painted finish.

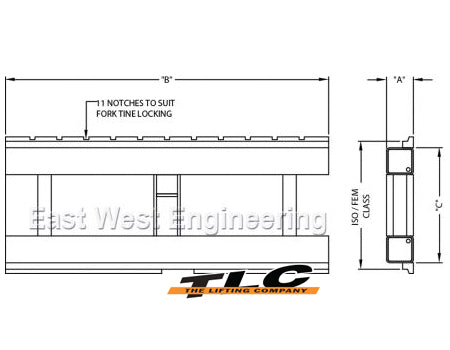

SPECIFICATIONS:
|
TYPE |
ISO / FEM Class | WLL @ 500mm Load Centre |
Unit Weight | “A” (mm) | “B” (mm) | “C” (mm) |
| QSC25 |
2 |
2500 kg | 54 kg |
100 |
1200 |
346 |
| QSC30 |
3 |
3000 kg | 68 kg |
100 |
1200 |
